I have determined that the shroud on my 914-6 core is incorrect. I need the shroud that has the long ducting to the oil cooler. Anyone have the proper shroud? I also need the right side ducting next to the fan. Thanks

@mb911 Ben should have the engine tin, if I understood correctly what you are looking for.

EDIT: Looks like I didn't get this right... Well if you also need the perimeter tin, Ben got you covered.

As for the triangular piece next to the fan, I am going through this miself. Will you have heat hexchangers or going with headers with no heat? That triangular piece would be different depending on this.

I have the surrounding tin. I just need the piece to the right of the fan, the stock piece, not a block off plate. Also, if someone has the correct 914-6 shroud.

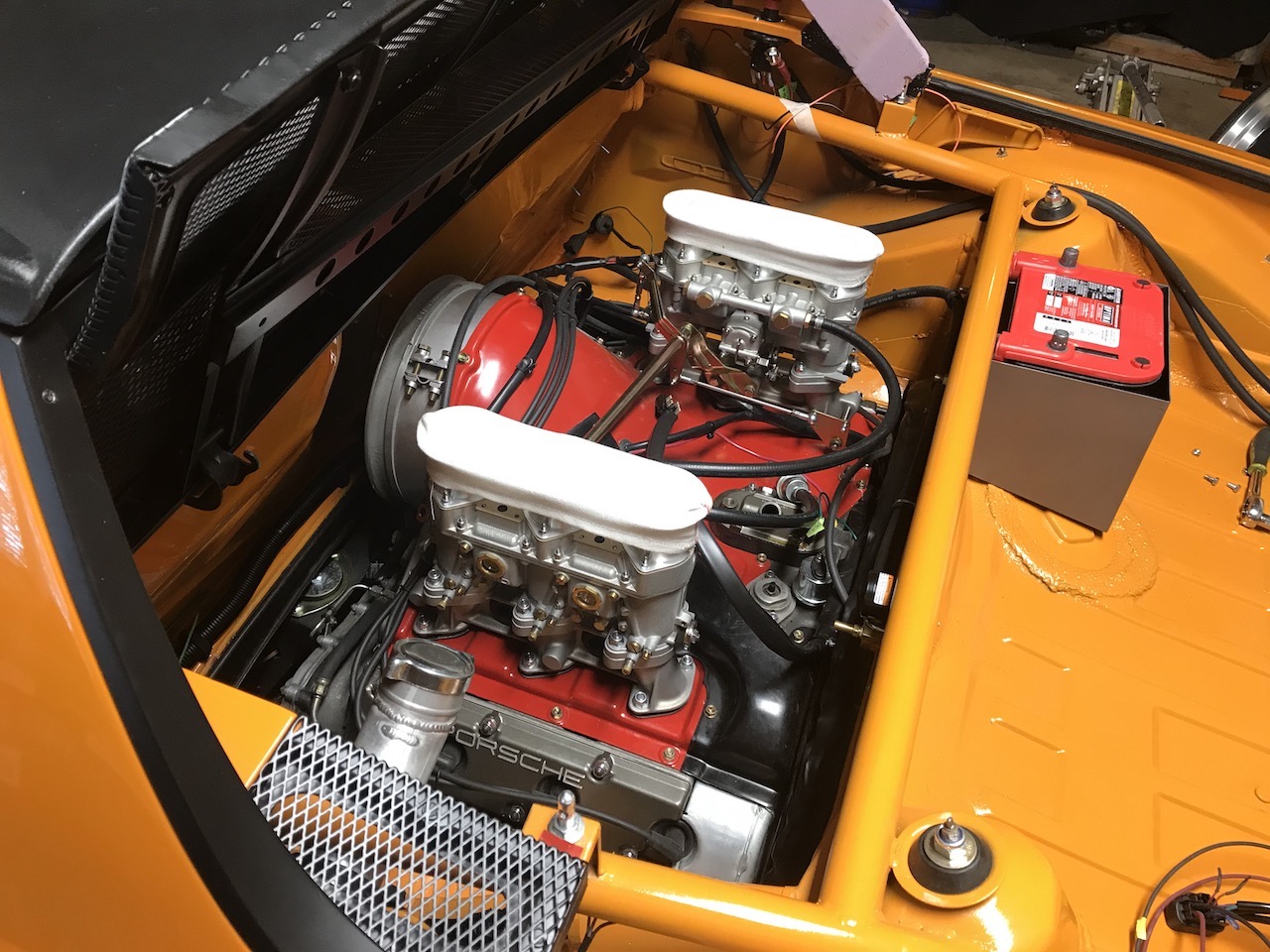

Source available that makes new……my shroud was ok but I needed the light gray duct piece. He can do both …..
I think he goes by Series 9……
Nice product in my experience
I will check and advise if Series 9 isn’t correct.

Click to view attachment

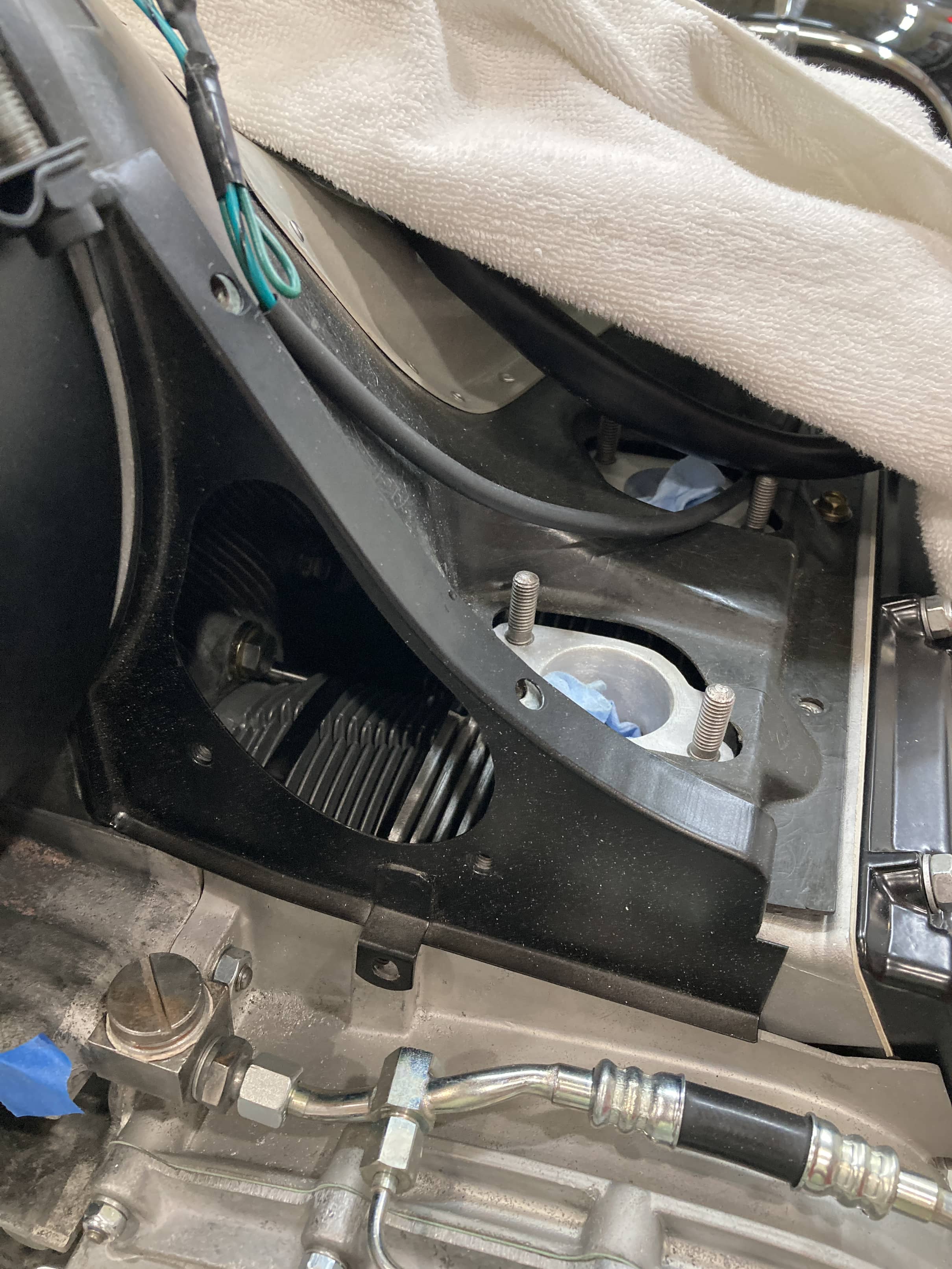

I may have an extra one of these….if you need. There is also a plate and plastic duct that goes there. Plate is available new.
Others helped me get this right so I’m just paying it forward…..thanks to them.

Correction
Series 900

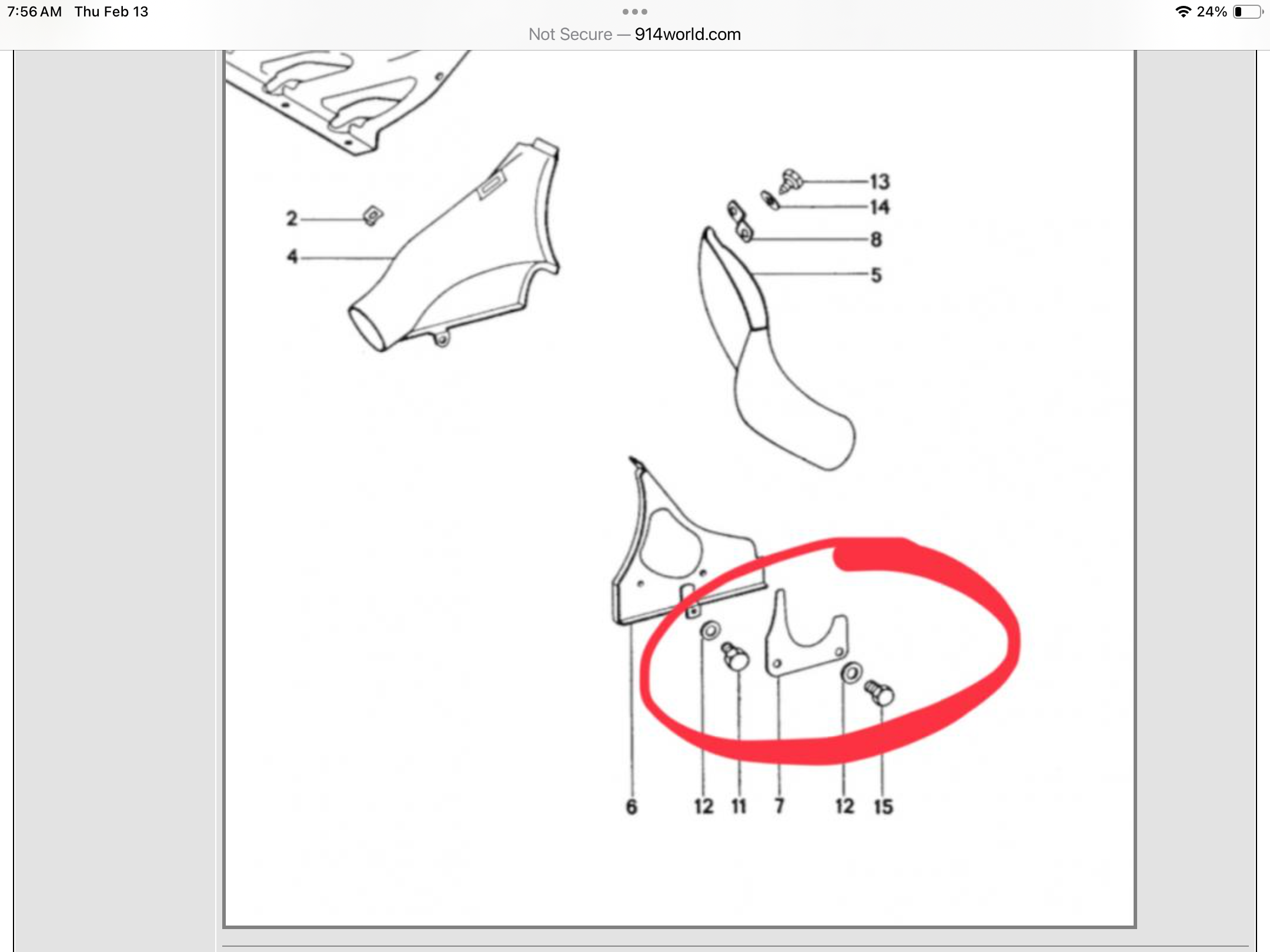

Hope this is what you are needing
Click to view attachment

Yes I need the whole assembly including plate and plastic duct

So I have #6 newly powder coated satin black
# 7 available new
#5 I do not have.
Suspect best to see if you can land the whole package.
Good luck
Sorry about trip on Series 900 shroud…..misunderstood your question.

I may have a spare #5.

I am away from my stash and will not be home until mid April. If you can’t find one remind me then and I will search my stuff.

Also check withKarl Hens at Thouroughbred Motorsports up in Corey PA. He has A LOT of stuff!

You can just buy an addition air scoop that runs from your shroud to the cooler. Just cut a hole and rivet on. I have pictures of mine somewhere, I'll look for them. Mark

Found this one. The long black object from the cooler up to back of shroud. MarkClick to view attachment

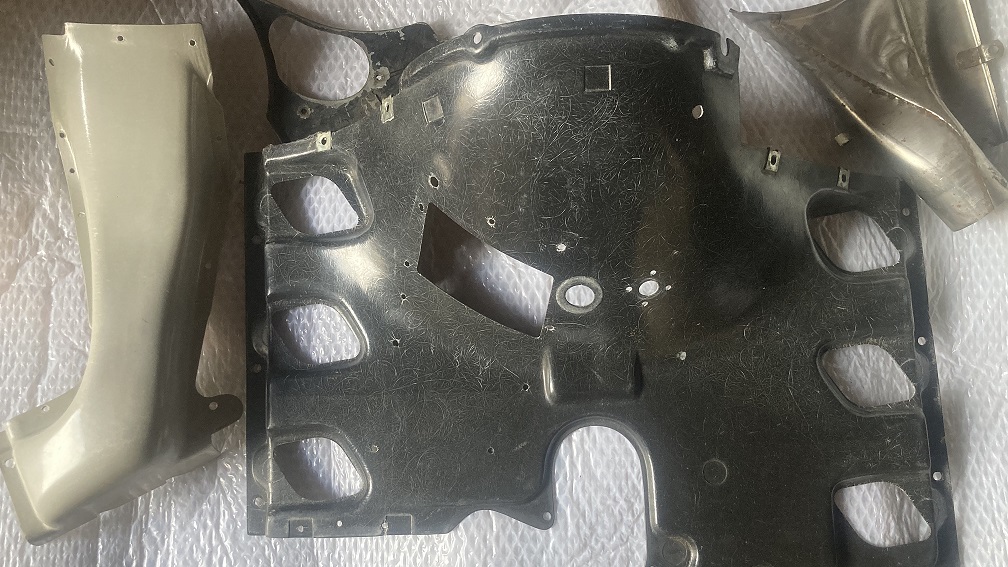

I have these four parts. Was told it’s a 2.2T shroud so it should be the same as a 914-6.

Click to view attachment

Wow, for a newbie to the forum you have EXACTLY what I need!

I Have no idea what they are worth. Perhaps somebody could advise

James

Series 900 makes the two FG parts……I think the black one is $450 but going by memory which is faulty. I can’t recall what the light gray one is but check and that can give you an idea….
Also package of most of the parts would be helpful …..so that becomes a value added.
Just saying

I have a very nice 914-6 shroud. I'll post a pic later this evening.

PM Sent

James
