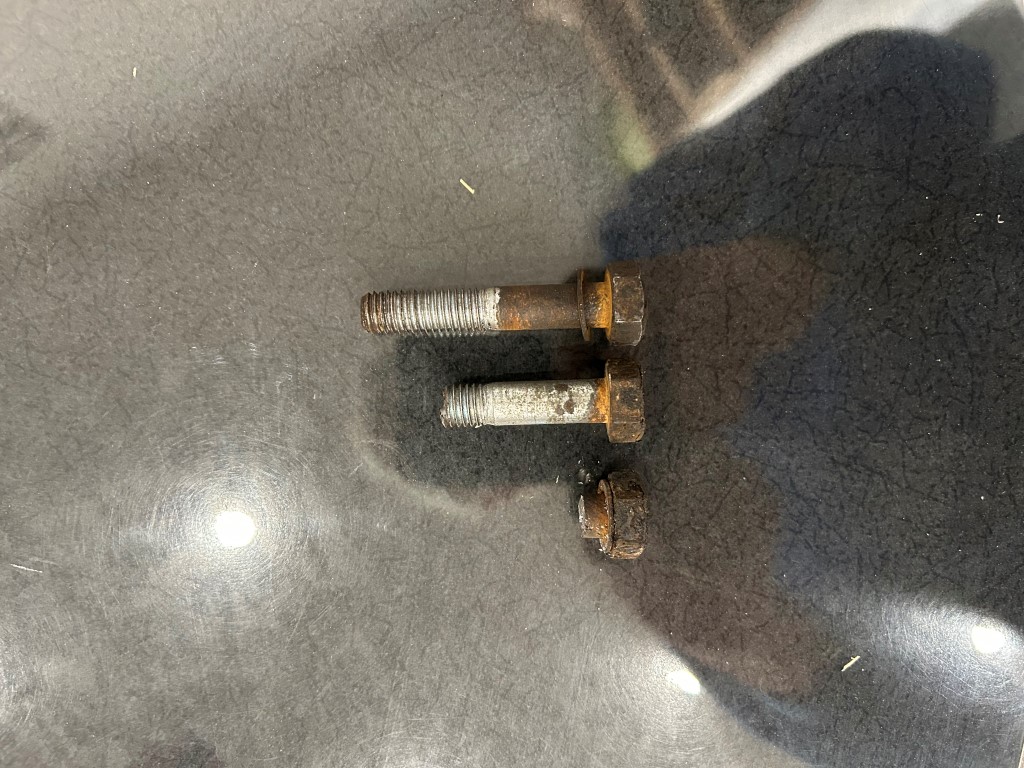

Long story short, 2 of the 3 bolts holding the left rear trailing arm broke on me. One broke and left some of the bolt out of the hole so I thought I could get it with heat and vise grip but nope. She is stuck. The other one broke and what is left is in the hole.

I cannot believe I am the first 914 owner dealing with this.

As I said, for the bolt that left me something to work with my plan was to heat it and use vise grip to try to get it. Tried on multiple occasion but she does not want to come out.

For the other one I guess I only have left to dril it out and try to redo the threads hoping for the best.

Does anyone has any other advice or method to try.

I do not have a welding machine so welding a nut is not an option for now and not sure it would work (for the one that sticks out of the hole).

I am open for any advice. I plan to work on this with my son this weekend.

Thanks

Click to view attachment
Click to view attachment

Those bolts go all the way through the body and have plastic plugs sealing the other end.

If you look on the top side of the suspension console you can find the plugs, they may be covered in undercoating. Pull them out and you will see the threaded section.

I use "pimp juice" on rusted ferrous parts. Works better than anything I've ever bought!

1/2 acetone (nail polish remover) and 1/2 DEXIII atf. I use the old stuff over DEXVI.

Soak bolts...

Sometimes I've had the pimp juice "Free up" completely locked up junk.

I have a set of left-handed cobalt drill bits that I would use next to drill out centers of bolts (the buried one). Sometimes the drill itself extracts the bolt.

The one that is still sticking out I'd clamp VGs on and work bolt back and forth a tiny bit until I saw movement. If you can break it lose you WON!

Worst case I'd carefully use a torch to heat up the threaded insert. Heating from the bolt side (with torch) won't work.

They do have "inductive" bolt heaters that MIGHT work on the one exposed. I have not used one yet but they can apply the heat specifically to the bolt and heat up the stuck portion enough to make a difference.

The internal broke off one would be the one I'd expect trouble out of

It's possible to catch the undercoat on fire, be careful.

The pimp juice needs to be shaken often.

I've found the best container is a 100ml vape juice bottle. Keep the little tube end. This stuff is bigtime runny.

Don't get pimp juice on anything that the acetone can eat. The ATF just makes the damage worse.

I've watched pimp juice CLIMB an 8mm bolt 1/2" up.

I 'pre' juice anything I want to take apart on anything over 20 years old...

You are so especially on those that broke off inside the bobbin. I don’t envy you. May God give you lots of courage and patience.

Ninja’s suggestions are solid. Start soaking the fasteners today!

Personally I’d consider hiring someone with a welder to deal with the exposed one.

On the ones broken off under flush - I’d find or fabricate a drill guide to keep any drilling with left hand drill bits centered. I would also pre-grind the underflush fastener as flat as I could get it to prevent the drill tip from waking off center on a jagged - fractured bolt.

Regardless of what happens . . . For the love of God, don’t try to use a bolt extractor

I had one of these come to me pre-broken and with a broken off EZ out in the bolt when I bought my car. I ended up replacing the bobbin during a compete restoration surgery. Details in my build thread if you want a view to the internals of what you’re dealing with. Page 3, post #46. Link to my build in my signature.

I dread thinking about doing this on car & upside down. The saving grace is that Tangerine Racing sells the bobbins if it all goes to They are weld in and a whole project unto itself . . . But at least they are available vs having to fabricate them from scratch.

Give it your best and if you need clarification on how to make the drill guide, etc. just ask for more clarification.

I remember @chris foley @tangerine racing used to sell replacement threaded tubes for the specific condition.
Not sure if he still has some, but I looked on his website and did not see them.
Pretty simple, a hole saw top and bottom to remove the old ones and the weld in the new ones, which are a larger outer diameter

Quit scaring him, its not that bad!

Annoying yes, end of the world, no. Im sure he has much bigger issues with his car, he just doesn't know about them yet.


Pretty much what everyone else said though, soak the crap out of it, get a stud extraction kit and attempt to drill/extract. This can potentially be done from above or below.

Worst case you totally destroy the threads the cylindrical threaded sleeve is just held in with a few welds and can be replaced. Tangerine used to sell these new, not sure if they still do. Even if you destroy just some of the threads its fully threaded longer than the bolt so you can get a slightly longer bolt to grab more threads.

Once you get the bolts out though chase all the threads with a tap and get new bolts, those all look pretty hammered.

imma’ gonna’ steal that line someday.

You are right - not the end of the world just a giant PITA. Bring the patience.

I think Ninja already pointed this out but let me reiterate - the threads are at the top of the bobbins - that is where you want the heat to expand and loosen the threads. Focusing the heat on the bottom where the bolt head is will be less important.

One thing that I am unsure of is the fact that these 2 ''bobins'' are open from bottom to top. I just verified on the passenger side and the bobin in the front, I can get through with a punch (or anything else for that matter) but the 2 at the back, I can't. Tried from the top or bottom. There seems to be some metal plate in there. Not a big problem, I can drill through, but I guess it could be the same on the driver side where I have my problem.

sorry, this is not an easy fix and has been mentioned do not attempt an ez out, Surely it will snap off.

its a long shot, but EDM

I successfully drilled out 3 of 6 on a car in my shop, just last month.
It is one of the worst repair jobs on a 914.
Saving the threads is important because the next level of repair involves replacing the heavy steel sleeve that the bolts thread into.
I used to sell replacement sleeves.

Depends on the MY of the car. Early cars DID in fact use caps, later cars the holes at top were either welded or brazed closed.

What do you mean - used to?

Those bobbins were lifesavers vs having to machine from scratch. But ya I get it - probably don’t move many per year and not a money maker

Oh man, being able to buy one from you was a real timesaver for me back around 2018 or so!

I've got a 31K mile 75 that definitely had the plastic caps.

I ripped those critters out and pimped juiced my stuff for a week before I tried to turn.

All fasteners came out nice enough to re-use!

All three are open from above with the plastic caps on them. If it was me I and there were any threads left in deep broken I would make a drill guide from a bolt to center your first drilling with your new left hand cobalt drill, not the harbor freight variety, and then sequentially drill with the other new left drills you buy until judt the threads are left. Then pick those out and carefully retap. The other you probably will have to grind flat and drill, I dont see enough material to grab. But as others have said soaking is your friend, I use free all but sure smells like acetone and atf. It can be done.

Mine seem to be capped like 1/2 to 3/4'' from the top. As I said, not a big problem as if needed, I could drill through.

In the case the thread get trashed, does going to a larger bolt could be an option. The sleeve (bobbin) seems beefy enough to accept a larger bolt. I guess it would mean increasing the size of hte holes on the trailing arm console. Does anyone see any problem to this last resort option, before having to replace the sleeves. One other option I see would be to have long bolts going thought the sleeve and putting a nut on top of the sleeve.

My bet is the caps were removed / lost and the holes at top left open. Dirt and corrosion then sits on top of the bolt forming a plug. I’ve seen that before.

Again, start soaking with penetrating oil, pimp juice or whatever. Fill the hole - let it sit. Rinse lather repeat. Do this for days in advance.

Then see if you can begin to remove it - break it - drill it - chisel it once it softens up.

The other less likely option is someone broke the bolt in there previously and left it. Maybe was only grabbing a few of the lower remaining threads with a new bolt threaded in below the broken portion.

As always - start least destructive and work your way to more aggressive methods. Do Not use an EZ out - once that hardened piece of tool steel breaks in a bobbin you’re absolutely screwed with EDM being the only method to remove hardened tool steel. And by the way - practically impossible to EDM on vehicle; even harder to EDM on car and upside down. Don’t reach for the EZ out, just don’t.

You might consider just getting the threaded bobbins from Tangerine racing. Cutting the old ones out and welding in new ones could be faster. I spent a ton of time trying to get the broken bolts out. I wish I had just changed them. I know you said you don’t weld.. so that is part of the issue. Hopefully you get it worked out.

The small quantity I have remaining is reserved in case anyone buys one of my raised suspension kits.

I've seen plenty of cars repaired by drilling out the threads and using longer thru bolts. I don't like it but it is a whole lot easier than replacing the sleeve. A potential problem with using larger diameter bolts is that they may limit the toe adjustment range.;

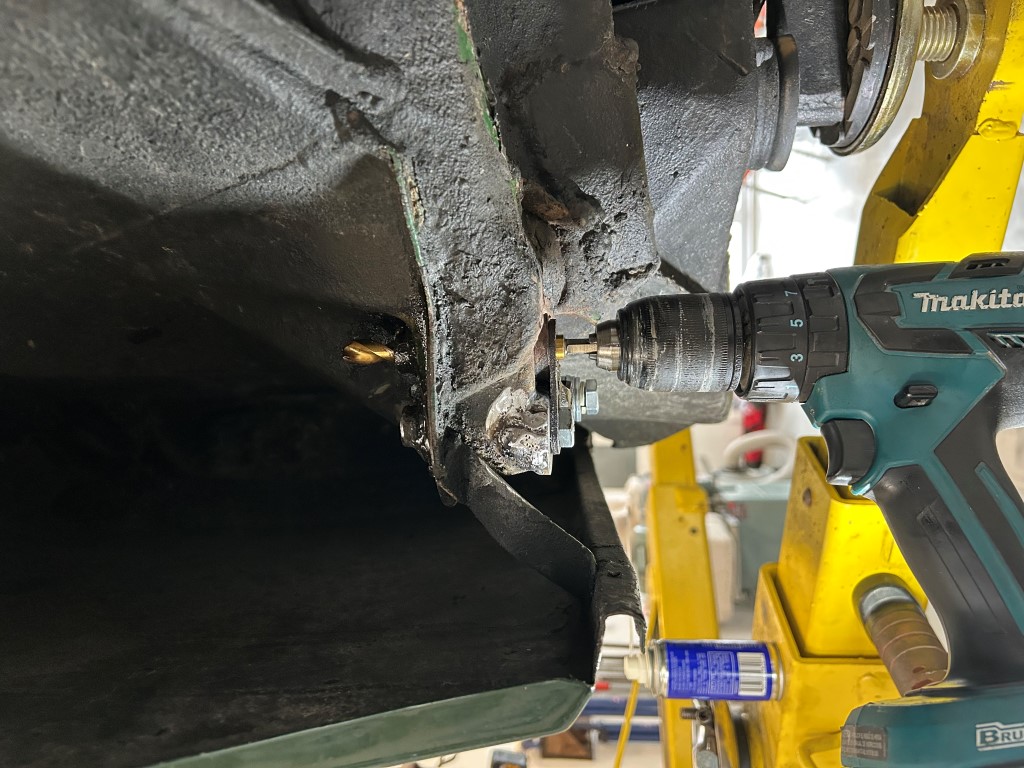

So my son and I were able to deal with the buried with. We drilled it from top and bottom but the 2 holes we created are not aligned so the M10x1.5 thread are no longer usable.

The option we selected was to make new threads (M12x1.75) at the bottom of the bobbin and we will use larger bolt to attach the console. As ChrisFoley pointed out this may limit the range for toe adjustment, but will see.

Tomorrow, we will start to deal with the other one.

I had the same thing happen to every one of my studs. Didn't know that much about the way the bolts were held in and snapped every bolt.

I drilled out every bolt with a small drill, then larger and larger until I could slide a bolt all the way through.

Temporarily I put a bolt through with a nut and washers through all

Then added my own nuts welding 2 in series then welding to the mount.

Aerokroil is a first rate penetrant. Spray generously and frequently. Be patient. Tapping the fasteners with a hammer can help break the rust bond. Be patient. Rather than reefing hard on stuff, use your torque wrench to break loose. Clicks? More penetrant. Be patient. I would consider finding a replacement trailing arm. Drill bits, taps and thread chasers get expensive for what might be a one time use.

There is no such thing as one time use of left hand drill bits on a 914. Tell the wife it’s an “investment”.

My left-handed cobalt's are my most prized drill bits.

I've used them hundreds of times.

I have yet to use them on a Porsche...

Tools are seldom a "bad" purchase!

Spoke's fix looks MEATY!

I like!

So following up on this.

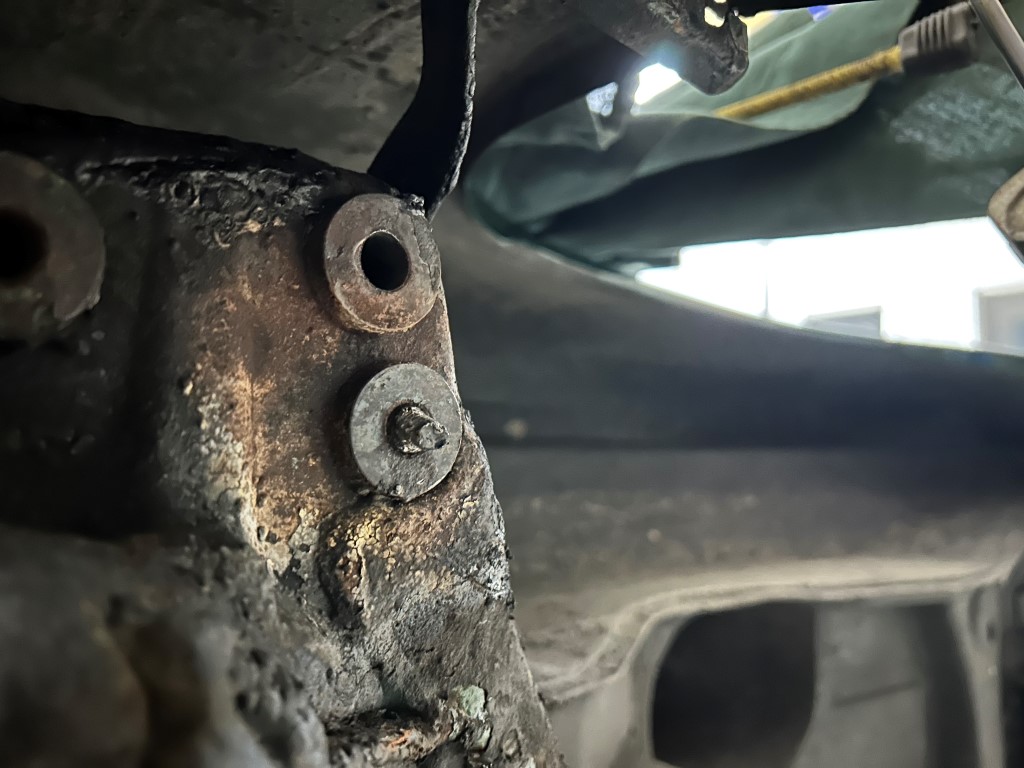

Last week end, with the help of my son, we reinstalled most of what I took out of the car. When we installed the rear left trailing arm, the one with the 2 broken bolts on which we tapped 2 of the 3 bobbins for larger bolt, it became obvious that it would not give enough adjustment to properly align the wheel as pointed out by ChrisFoley. We had to try it!

Our next move will be to drill through and use longer bolts.

I will as well look at replacing the bobbins as a potential third option. I will make some measurement and prepare a drawing in order to get some bobbins machined.

One question I would have is to know if someone can tell me how the bobbins are attached to the car frame (welding top and bottom, only top, only bottom??). Knowing how they are installed would help in knowing how to get them out.

Click to view attachment

Check this post for some pictures.

http://www.914world.com/bbs2/index.php?sho...pension+console

James, is it possible to drill out the bolts slightly oversize, then re-tap the cylinders to accept a larger bolt? It would'nt be very big and the thickness of the inserts would'nt be compromised. Just a thought...could save a lot of work. Chris Foley, you're welcome to offer any information that would help.

We also have these available for left and right. I also turn the studs, so they could be special ordered from us as well.
https://www.restoration-design.com/store/product/PP318IR

Pete

Once again,

our valuable neighbors to the North come through, left and right

Thanks guys

Replacement bobbins already delivered. Will work on getting the ones to replace out of the car this week end and then find a good welder to get the new ones welded in place.

Click to view attachment

You might consider making some sort of a jig to realign everything back to the original position before you cut the old ones out. Just a thought.

Just to close the loop on this, here is how I finally got this sorted out.

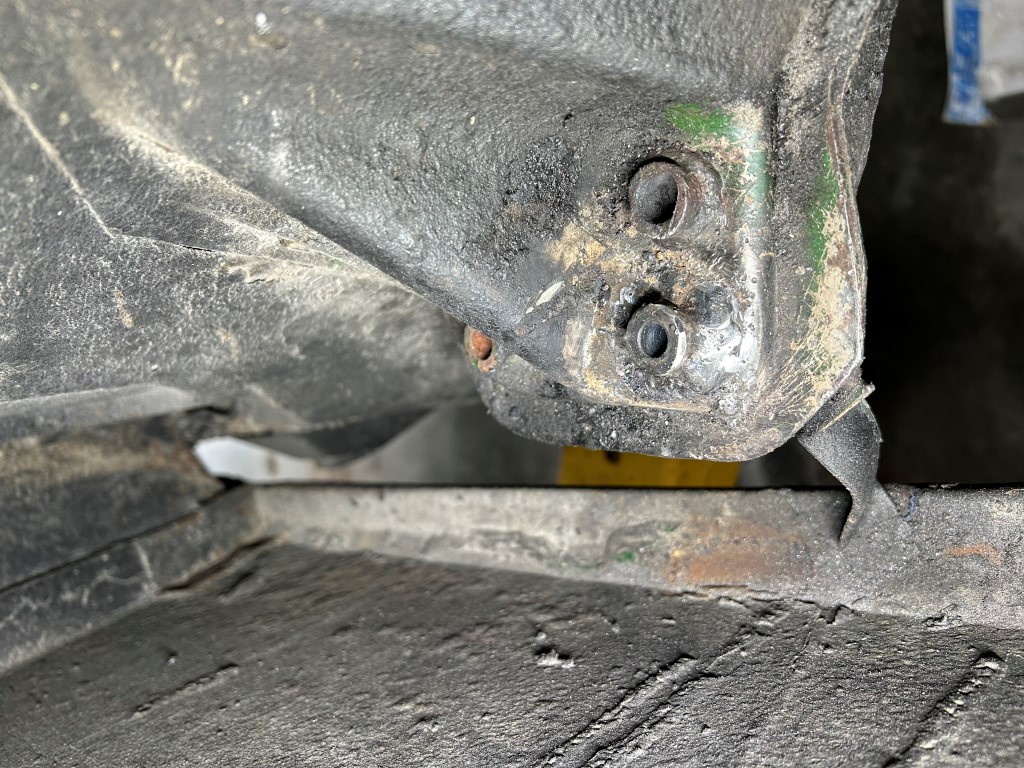

I first removed the rear outside bobbin that had a bolt broken in it. After I removed it, I was not too confident that I would be able to properly sit the new bobbin I got so I got a new one machined. The new one I had made was 0.5 inch larger in diameter which gave me a better seat on the bottom of the console. With this new bobbin in hand and with the help of a friend of mine and his probably 50 years old stick welder, we got this new bobbin welded. The result is pretty good, as far as I am concerned. He was able to weld both top and bottom. To make sure it was in the good position, we used the L-shape part that goes in the trailing arm when he welded on top of the console. Here is the result.

Click to view attachment Click to view attachment

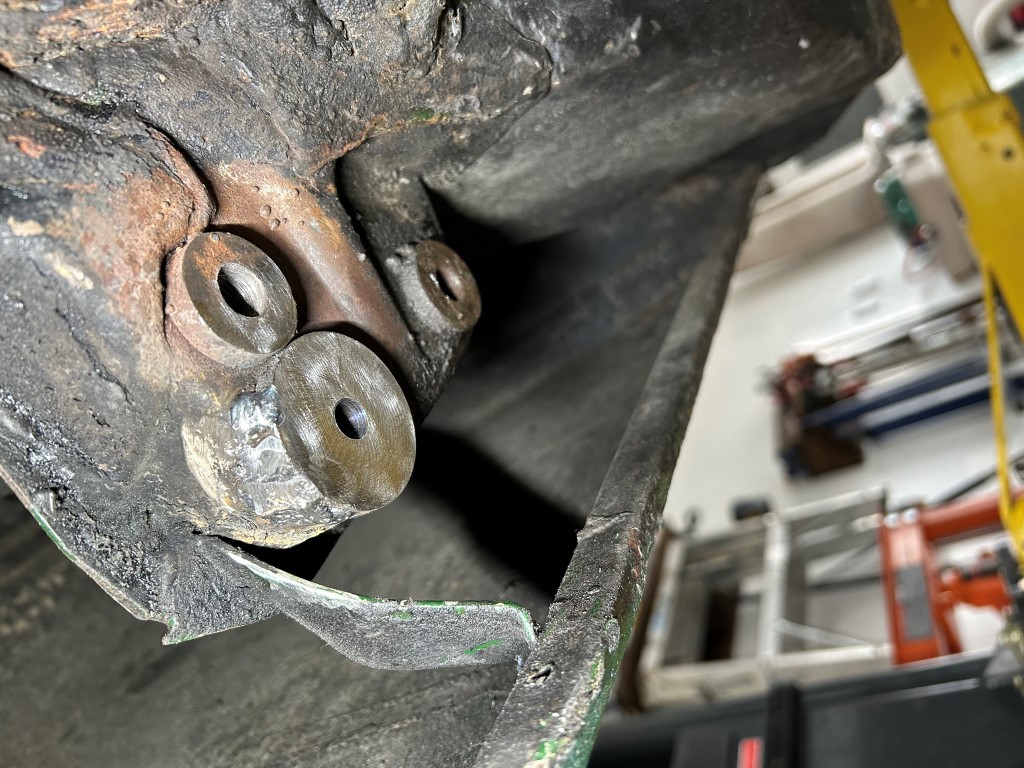

Then for the other bobbin in which there was a broken bolt, I decided to drill through it and use the long bolt & nut method. I took my time to complete the drilling and finally got though. Here also, I used the L-shape part as a drilling guide and tried to stay as straight as possible

Click to view attachment

I then got everything back on the car and lowered it to the ground. The wheel seemed decently straight. Got the car out for a ride and it drove good. It did not behave weird. We have been driving it for close to a 100 miles now and still good.

I will keep a close watch on this to make sure it stays like this and as well I will get the car aligned as soon as I can bring it back to a shop I found that can do that for me.

I had a couple broken off in the bobbin. I rigged up an ECM set up and dissolved them out

Google ECM - electro chemical milling. I used a glass tube, a copper wire, a 12v car charger and battery, and a small pump. I used a saltwater electrolyte. It is similar to EDM but EDM uses high voltage relatively low current where ECM uses low voltage relatively high DC current. Thus the ability to rig it up with a car battery and a smallish electrolyte pump.

I know this is an unusual practice but I had industrial experience with this process. Works like a charm. You can dissolve just about any metal with DC current and an electrolyte. Even cobalt chrome alloys. Amazing actually.

A similar process is Stem Drilling.

https://www.substech.com/dokuwiki/doku.php?...mical_machining
